High-temperature nickel-based alloys are a class of materials known for their excellent heat resistance, corrosion resistance, and high strength. They are widely used in high-temperature environments such as aerospace, gas turbines, nuclear power, and petrochemical industries. Due to their outstanding properties, they are classified as difficult-to-machine materials.

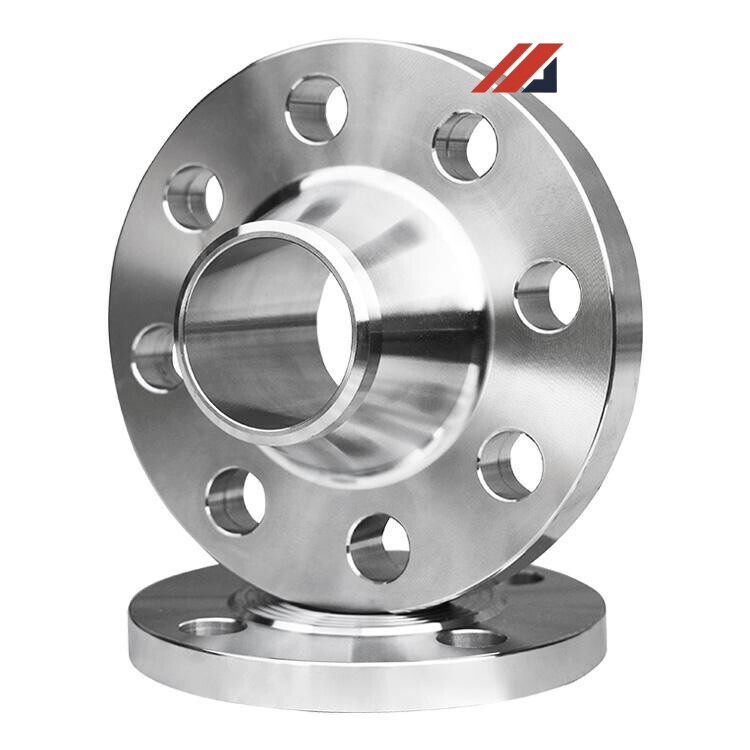

High-temperature nickel alloy flangesHigh-temperature nickel alloy flanges are flanges made from heat-resistant nickel-based alloys. They are primarily used in environments that require resistance to high temperature, high pressure, and severe corrosion. These flanges are widely applied in high-end industries such as petrochemicals, nuclear power, aerospace, and marine engineering.

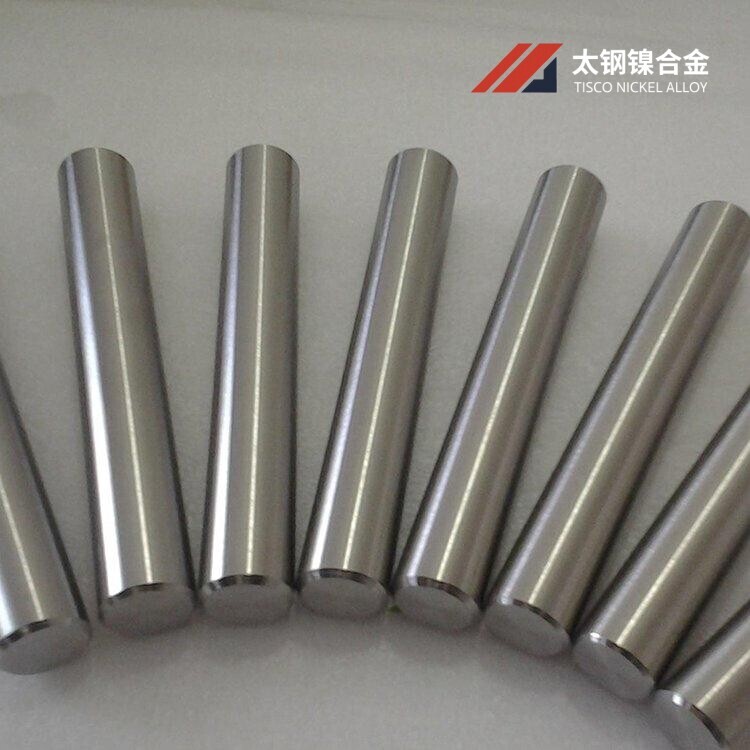

High-temperature nickel alloys (also known as heat-resistant nickel-based alloys) are materials based on nickel and alloyed with elements like chromium, iron, molybdenum, cobalt, titanium, and aluminum.Learn More- High-Temperature Nickel Alloy ForgingsHigh-temperature nickel alloy forgings refer to forged components made from nickel-based superalloys, known for their excellent strength, heat resistance, and corrosion resistance. These forgings are widely used in aerospace, nuclear power, petrochemical, gas turbines, and energy equipment, where materials must withstand extreme conditions.Learn More

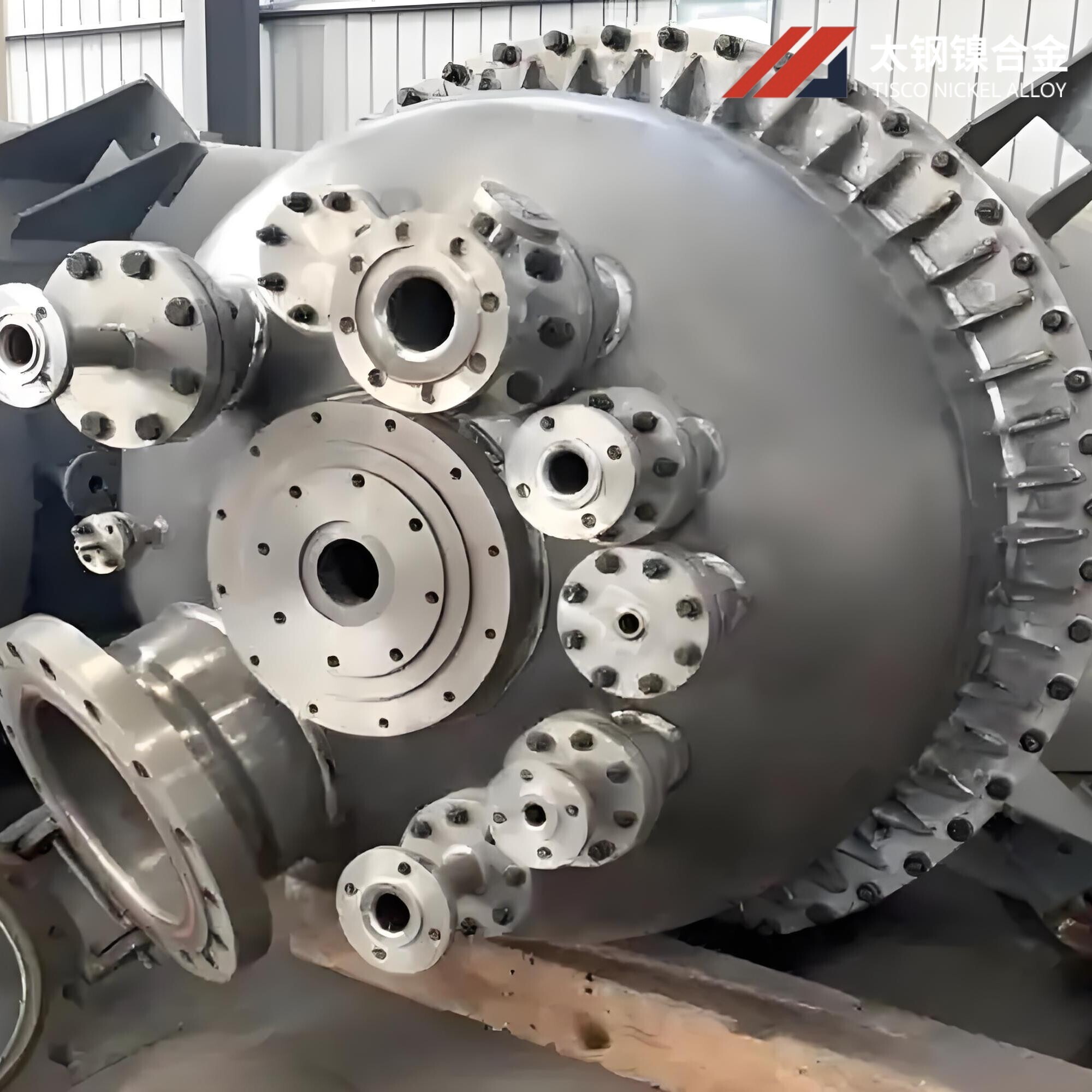

Hastelloy and Inconel pressure vesselsKey Features: Exceptional corrosion resistance, especially in harsh environments involving strong acids, chlorides, and wet chlorine gas.
Common Grades: C-276, C-22
Typical Applications: Chemical reactors, acid pickling equipment, exhaust gas scrubbers, etc.

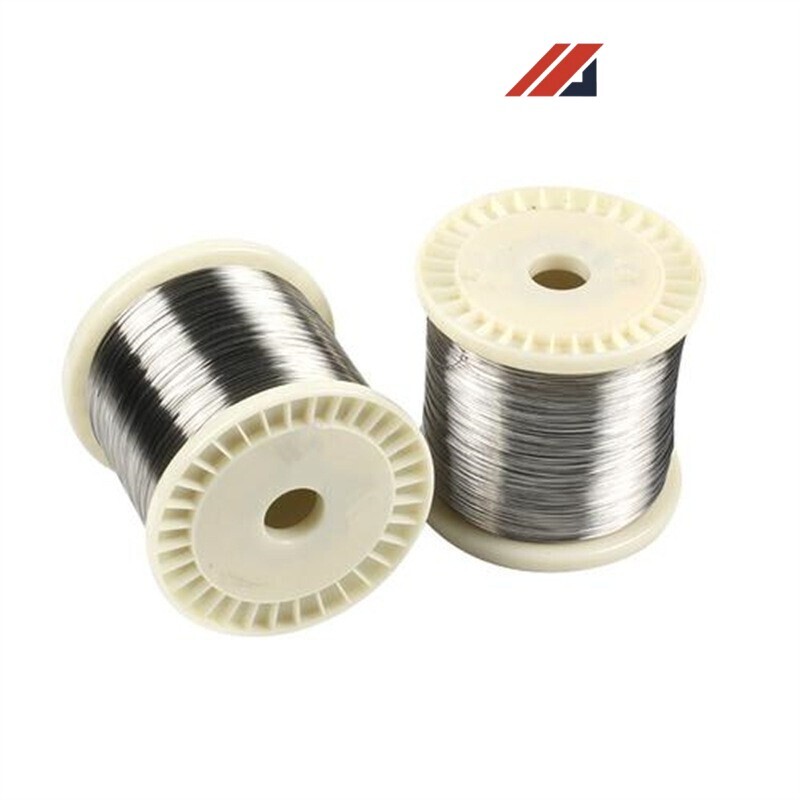

Temperature Range: Approximately 500–800°C.Learn More- Nickel Alloy Wire"Nickel alloy wire" refers to wire made from alloys consisting of nickel and other metallic elements (such as iron, chromium, copper, molybdenum, etc.). Depending on the alloy composition and intended use, nickel alloy wires come in various types with different properties.Learn More
Machining of High-Temperature Nickel-Based Alloys
1. Nickel Alloy Flanges
Description: Used for connecting pipelines, valves, pumps, and other equipment. Widely applied in high-temperature, high-pressure, and highly corrosive environments such as petrochemical, marine, and nuclear industries.
Common Alloys: Inconel 625, Incoloy 825, Hastelloy C276, Monel 400
Machining Challenges: Typically large in diameter, require high cutting forces, and have a high thermal expansion coefficient. High-rigidity machines and forced cooling are often necessary.
2. Nickel Alloy Reactors / Pressure Vessels
Description: Used in chemical, pharmaceutical, and energy industries for processing highly corrosive media. These vessels must withstand high pressure and offer excellent corrosion resistance.
Common Alloys: Hastelloy C22/C276, Incoloy 825, Nickel 200/201
Manufacturing Method:
Usually fabricated by welding rolled plates (weld quality and corrosion resistance must be strictly controlled)
May include a nickel alloy cladding layer
Machining Considerations: Involves extensive welding and non-destructive testing (NDT). Post-weld heat treatment and precision machining are often required.
3. Nickel Alloy Rings
Description: Ring-shaped components used in aerospace engines and gas turbines, such as turbine rings, sealing rings, and support rings.
Common Alloys: Inconel 718, Waspaloy, FGH95, Rene 41
Processing Methods:
Typically manufactured by hot die forging or ring rolling
Followed by precision machining (turning, grinding)
Machining Challenges: Rings have low rigidity and are prone to deformation. Precise control of machining allowance and toolpath is essential.
Main Types of Nickel-Based Superalloys
Wrought Superalloys
Examples: Inconel 718, Inconel 625, Waspaloy, Alloy 263
Features: Suitable for hot working (forging, rolling), used in shafts and discs.
Cast Superalloys
Examples: Rene 80, IN-738, K418.
Features: Good formability for complex parts, commonly used in turbine blades.
Powder Metallurgy Superalloys
Examples: FGH95, RR1000
Features: Dense microstructure, superior properties, used in high-performance engine components.
Typical Nickel-Based Superalloys and Their Properties
▷ Alloy NameComposition FeaturesTypical ApplicationsMachining Challenges.
▷ Inconel 718 Ni-Cr-Fe-Nb-Mo-Ti Turbine discs, combustion chambers, fasteners Work hardens rapidly, high cutting forces.
▷ Waspaloy Ni-Co-Cr-Ti-Al High-pressure compressor rotors Complex heat treatment, poor machinability.
▷ Rene 80 Ni-Cr-Al-Ti-Co Turbine blades High hot cracking tendency, requires HIP after casting.
▷ FGH95 Ni-Co-Cr-Al-Ti High-temperature shafts and discs Powder formed, poor machinability but uniform microstructure.
Machining Processes and Considerations
Cutting (Turning/Milling)
Tool materials: Preferably coated carbide, ceramic, or PCBN tools
Cutting parameters: Low depth of cut, low feed rate, high cutting speed to avoid overheating
Cooling: High-pressure coolant or MQL (Minimum Quantity Lubrication)
Grinding
Use CBN grinding wheels or ceramic-bonded wheels.
Avoid localized overheating, which may cause surface cracks or white layers.
Electrical Discharge Machining (EDM/WEDM)
Suitable for complex shapes or difficult-to-machine components.
Tends to produce a heat-affected zone, which may need removal afterward.
Laser Processing / Additive Manufacturing
Especially useful for complex geometries like turbine blades.
Usually combined with hot isostatic pressing (HIP) and finishing operations.
Methods to Improve Machinability
Preheating or solution treatment to improve ductility.
Proper selection of tool materials and geometry.
Use of advanced CAM software to optimize toolpaths.
Multi-axis CNC machining to minimize setups and improve precision.
